| OS | Windows /iOS / Android / ChromeOS | ||
|---|---|---|---|
| Image Sensor | CMOS | ||
| Image(Pixels) | 640 (H)*480 (v)pixels | ||
| Light source | Aiming: 625 nm RED LED / White Illumination 4000K White LED | ||
| Scan Mode | Handhand (Manual) / Handfree (Automatic ) | ||
| Scan Rate | 300 scans/second | ||
| Scan accuracy | ≥4mil@ Code39 | ||
| Print Contrast | ≥20% | ||
| Visual Indicator | Red and Blue LED Light ,Buzzer | ||
| Interfaces | USB keyboard,USB virtual serial port,RS-232 | ||
| Scan Angle | Left and right:± 55 °, Front and rear:± 55 °, Rotate:360 ° | ||
| Field of view | 32° horizontal, 24° vertical | ||
| Transmission Mode | Wired Transmission | ||
| Dimension (L x W x H) | 179*68*94(mm) | ||
| Weight | 203g(with cable) | ||
| Cable | Standard 1.8M straight | ||
| Power parameter | Input Voltage:5VDC±5%, Working corrent:150mA | ||
| Scan distance | 20-200mm @ EAN 13mil PCS=100%:5-170mm @ QR 20mil PCS=100% | ||
| Environmental parameters | |||
| Operating Temperature | -20°C~+ 60°C | ||
| Working Humidity | 5% to 95% relative humidity, non-condensing | ||
| Storage Temperature | -40°C~+70°C | ||
| Electrostatic protection | ±8 kV(Direct discharge) | ||
| Ambient brightness | 0~100,000Lux | ||
| Drop Resistance | IP54 and2M | ||
| Safety regulations |
|
||
| Decoding Capability | |||
| 1D |
|
||
| 2D |
|
||
PRIME POS

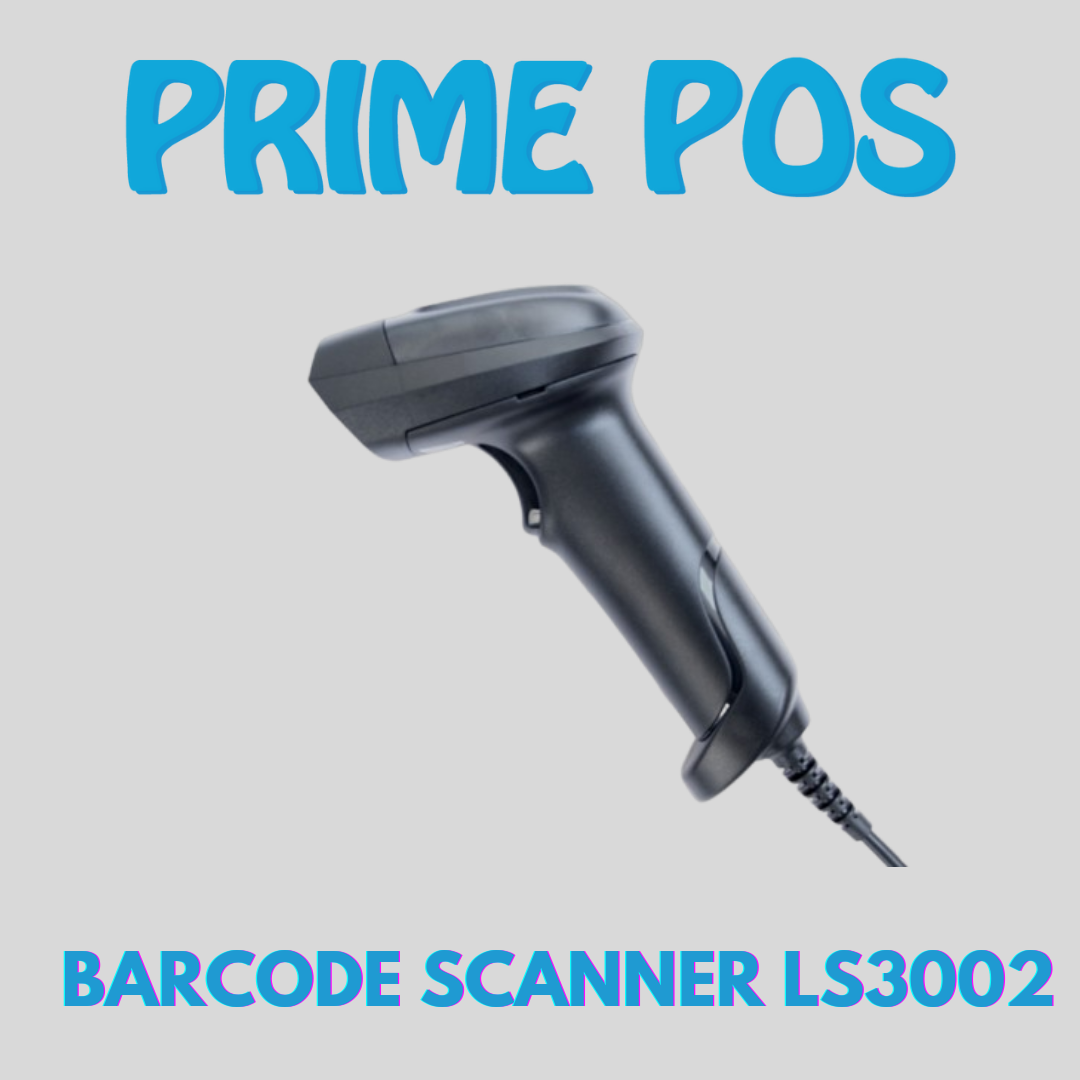

BARCODE SCANNER LS3002
BARCODE SCANNER LS3002
Regular price
Rs. 1,900.00
Regular price
Sale price
Rs. 1,900.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Introducing the Latest Addition to the RUGTEK Series: 2D QR Barcode Scanner We are excited to unveil our newest innovation in the RUGTEK series: a state-of-the-art 2D QR Barcode scanner with a million-pixel scanning capability. This advanced scanner transcends traditional limitations, effortlessly capturing barcodes from mobile devices and even curved surfaces.
Features
• LED Indicator and Buzzer Sound: Provides clear feedback for successful scans.
• Excellent Decoding: Capable of scanning various complex codes with ease.
• Ergonomic Design: Ensures comfortable operation for extended use.
• Versatile Scanning: Supports both paper barcodes and QR codes on mobile screens.
• Durable Cable: High-temperature resistant material for longer life.
• Modular Design: Easy to assemble with strong drop resistance.
Explore the future of barcode scanning with our latest RUGTEK 2D QR Barcode scanner.
Technical Specifications
