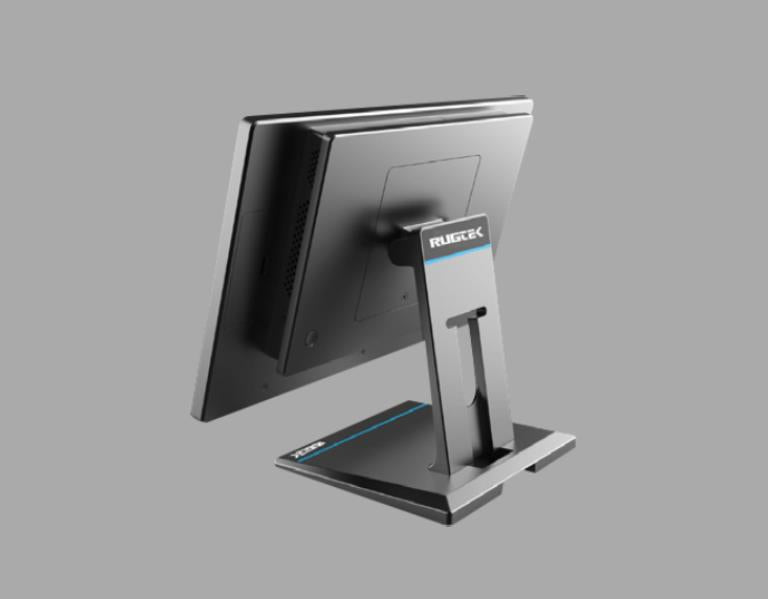

Rugtek RTP4 Desktop Android POS System

RUGTEK RTP 4

Smart Android POS Terminal – Reliable, Stylish, and High-Performance

Experience unmatched performance and durability with our advanced Android POS terminal. Powered by a robust quad-core 2.0GHz ARM Cortex-A55 processor, this device is designed for seamless multitasking and lightning-fast operations.

• Sleek and Industrial Design: Combines modern aesthetics with rugged construction to thrive in demanding business environments.
• Extensive Connectivity Options: Features multiple I/O ports and broad peripheral compatibility to support various business needs.
• Space-Saving Wall Mount Support: VESA-compatible design allows for easy wall installation, optimizing your workspace.
• Modular and Expandable: Designed for flexibility with a modular architecture that supports easy maintenance and optional secondary display integration.

Technical Specifications

Performance

• Processor: Quad-core ARM Cortex-A55, clocked at 2.0GHz
• Operating System: Android 13.0
• Memory Options:
  • 4GB RAM with 64GB internal storage
  • 8GB RAM with 128GB internal storage (optional)
• External Storage Expansion:
• • 2 x USB 3.0 ports
  • 3 x USB 2.0 ports

Display

• Primary Screen:
  • 15.6-inch display
  • Available in Full HD (1920×1080) or HD (1366×768) resolution
  • Capacitive multi-touch functionality
• Secondary Display (Optional):
  • 10.1-inch screen
  • 1024×600 resolution
  • Interfaces and Connectivity
• USB Ports: Total of 6 USB ports
• Serial Communication:
  • 1 x DB9 port
  • 1 x RJ11 port
• Cash Drawer Connection: 1 x RJ12 interface
• Network Interface: 1 x RJ45 Ethernet port
• Audio Jack: 1 x headset jack
• Power Connection: 1 x DC input (φ5.5mm)
• Buttons & Indicators: Power button, power status LED, and audible alerts

Audio Output

• 2 x 2W built-in speakers

Dimensions

• 380mm (W) × 186mm (D) × 288mm (H)

Connectivity

• Wired Networking: Gigabit Ethernet (1000Mbps TCP/IP)
• Wi-Fi: Dual-band 2.4GHz & 5GHz, IEEE 802.11 a/b/g/n
• Bluetooth: Version 4.2 with BLE support

Environmental Conditions

• Operating Temperature Range: 0°C to +40°C
• Storage Temperature Range: -20°C to +60°C
• Humidity Tolerance: 5% to 95% RH (non-condensing)

Included Accessories

• Standard:
  • Power adapter
  • USB cable
  • Battery
• Optional Add-ons:
  • Face recognition camera
  • Magnetic stripe reader (MSR)
  • NFC module with rewrite capability
