Intelligently Designed Adjustable Base

• Powered by Intel's Elkhart Lake Processor
• Easy Accessibility with Top Connectivity Ports
• 15.6" True-flat PCAP Touch Display

  PS-3616-G2 Overview



  Intelligently Designed

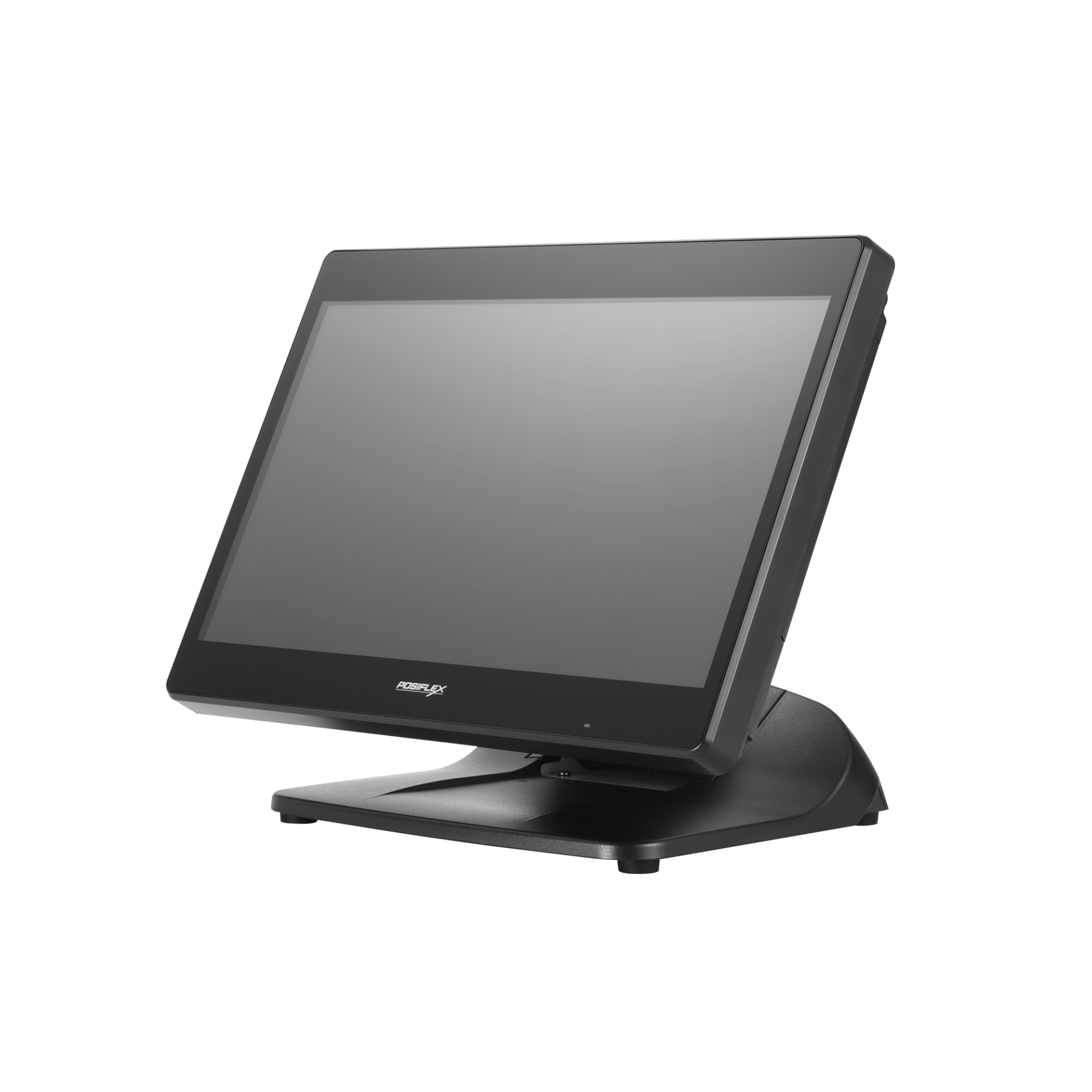

  Equipped with an adjustable base, PS-3616-G2 enables the ultimate flexibility for space-limited environments.



  Expanded Capability

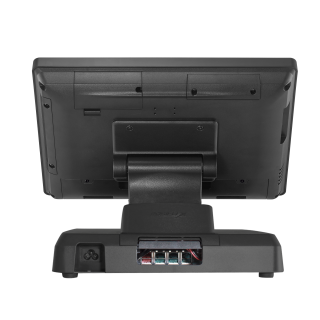

  By separating a full set of ports into the top of the terminal, PS-3616-G2 provides extensive connections, easy accessibility, and reliable peripheral cabling.



  Reliable

  Built with a 15.6" PCAP wide touchscreen display and powered by Intel^® Elkhart Lake processor, PS-3616-G2 is designed to run today's demanding POS applications.

  Specification

  System-Configuration	PS-3616-G2
  Processor	Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
  System Memory	DDR4 SO-DIMM x 1, max. 32GB
  Storage Device	M.2 connector x 1 (support SATA signal only)
  RAID Function	N/A
  Intel vPro Support	N/A
  TPM	TPM 2.0
  Power Supply	12V/60W
  OS Support	Windows 10 IoT LTSC Windows 11 IoT LTSC
  Display & Touch
  LCD	15.6" TFT LCD
  Resolution	1366 x 768
  Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)
  I/O Expansion
  Serial Port	DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
  Parallel Port	via optional conversion cable through service window
  Standard USB Port	USB 3.0 x 2+ USB 2.0 x 3
  PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN8 base
  OTG USB	N/A
  LAN Port	10/100/1000 Mb x 1
  Display Port	VGA x 1 (12V support for Posiflex monitors)
  CR Port	RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer
  PS2 Port	via optional conversion cable through service window
  UPS Port	N/A
  Audio	Buzzer x 1; Optional internal 2W speaker x 1
  Expansion Slot	M.2 slot x 1
  Dimension
  Dimension (W x D x H in mm)	372 x 252.7 x 291.4
  Weight (N. W. in kg)	4.7
  Environmental
  Operating Condition	0°C - 40°C, 20%RH - 90%RH
  Storage Condition	-20°C - 70°C, 10%RH - 90%RH
  Built-In Options
  WiFi module	M.2 WiFi/BT module
  Camera Module	N/A
  Printer Module	N/A
  AG Glass	N/A
  Attachment Options
  POS Monitor	Non-touch TFT USB LCD: 7"/9.7"
  Line Display	2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display; 7" color LCD graphical line display
  External UPS Pack for RT Series	N/A
  Attachment	MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad
  Note	-
